Application:
Hardwall hose designed for suction and delivery of a wide range of petroleum fuel with aromatic content up to 50% for tank trucks.

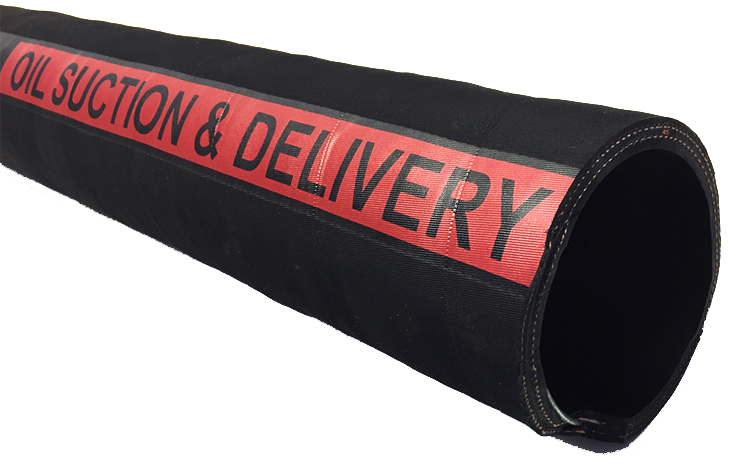

HOSE OIL SUCTION & DISCHARGE-TANK 10 BAR
Tank oil hose150psi / Manguera para descarga de aceite
HOSE OIL SUCTION & DISCHARGE-TANK is designed for tank tanker, rail tanker and in-plant, oilfield loading operations to transfer and transfer gasoline, oil, ethanol blends and other petroleum base products up to 50% aromatic content. It is designed for pressure, gravity flow, or full-suction service. Working pressure is a vital factor when you select the right hose for your special applications.

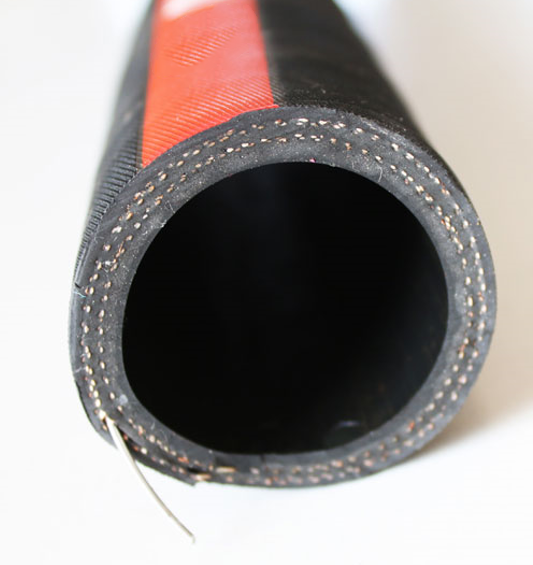

Construction:
Tube: black, smooth, nitrile rubber.
Reinforcement: high strength synthetic fabric and helix wire, with anti-static wire
Cover: black or red,smooth or corrugated, oil, fuel, and weathering resistant synthetic rubber.
Application:
Hardwall hose designed for suction and delivery of a wide range of petroleum fuel with aromatic content up to 50% for tank trucks.
Temperature: -32°C to +82°C (-90°F to +180°F)
Characteristic:
●Weather and abrasion resistant cover
●Corrugated cover available,more flexible
●Light weight,easy to handle
●Designed for aromatic content up to 50%
inside diameter | inside diameter | layer | Working pressure | Max length |
Inch | mm | / | bar | m |
3/4 | 19±0.6 | 4 | 20-40 | 61±1% |
1 | 25 ±0.8 | 4 | 20-40 | 61 ±1% |
1-1/4 | 32 ±1.0 | 4 | 20-40 | 61±1% |
1-1/2 | 38±1.0 | 4 | 20-40 | 61 ±1% |
2 | 51 ±1.2 | 4 | 20-40 | 61±1% |
2-1/2 | 64±1.2 | 4 | 20-40 | 61±1% |
3 | 76 ±1.4 | 4 | 20-40 | 61±1% |
4 | 102 ±1.6 | 6 | 20-40 | 61 ±1% |
4-1/2 | 115±1.6 | 6 | 20-40 | 20 ±1% |
5 | 127±1.6 | 6 | 20-40 | 20 ±1% |
6 | 152 ±2.0 | 6 | 20-40 | 20 ±1% |
8 | 203 ±2.5 | 6 | 20-40 | 20 ±1% |
10 | 254 ±3.0 | 8 | 20-40 | 10 ±1% |
12 | 305 ±3.0 | 8 | 20-40 | 10 ±1% |
